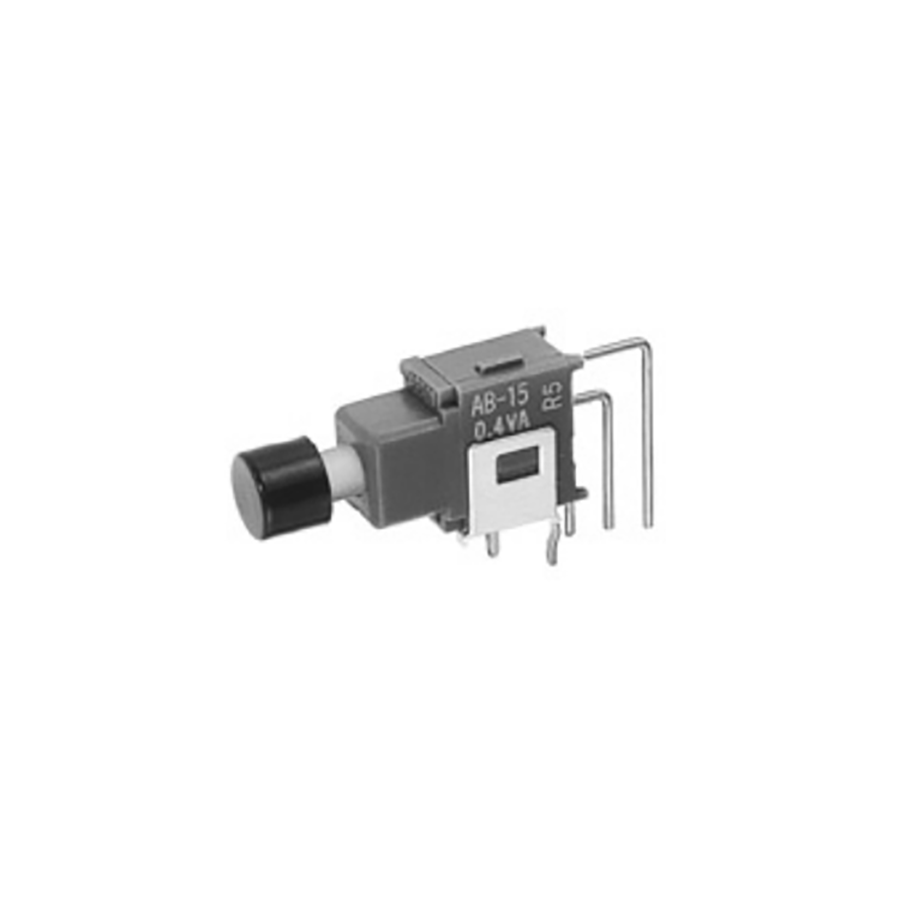

AB15AV
Manufacturer:
NKK Switches
Mfr.Part #:
AB15AV
Datasheet:
Description:
Pushbutton Switches Through Hole SPDT On-Mom Plunger for Cap Non-Illuminated Standard Current Rating:400 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 28 V |
| Length | 5.84 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 28 V |
| Circuit Type | SPDT |
| Packaging | Tray |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Type | Standard |
| Current Rating | 400 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 28 V |
| Orientation | Vertical |
| Throw Configuration | SPDT |
| Number of Positions | 2 |
| Max Voltage Rating (AC) | 28 V |
| Switch Function | On-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Actuator Material | Polyacetal |
| Mechanical Life | 50 kcycles |
| Actuator Type | Plunger for Cap |
| Termination Style | PC Pin |
| IP Rating(Ingress Protection) | IP67 |
| Cap Color | White |
